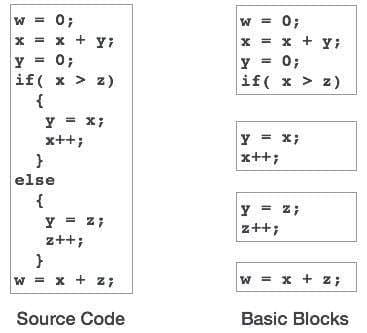

Basic block identification

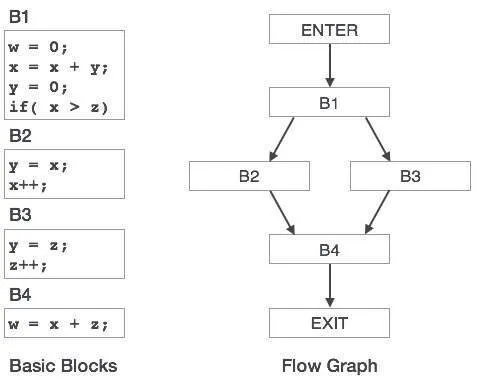

Control Flow Graph

Optimizations using basic blocks

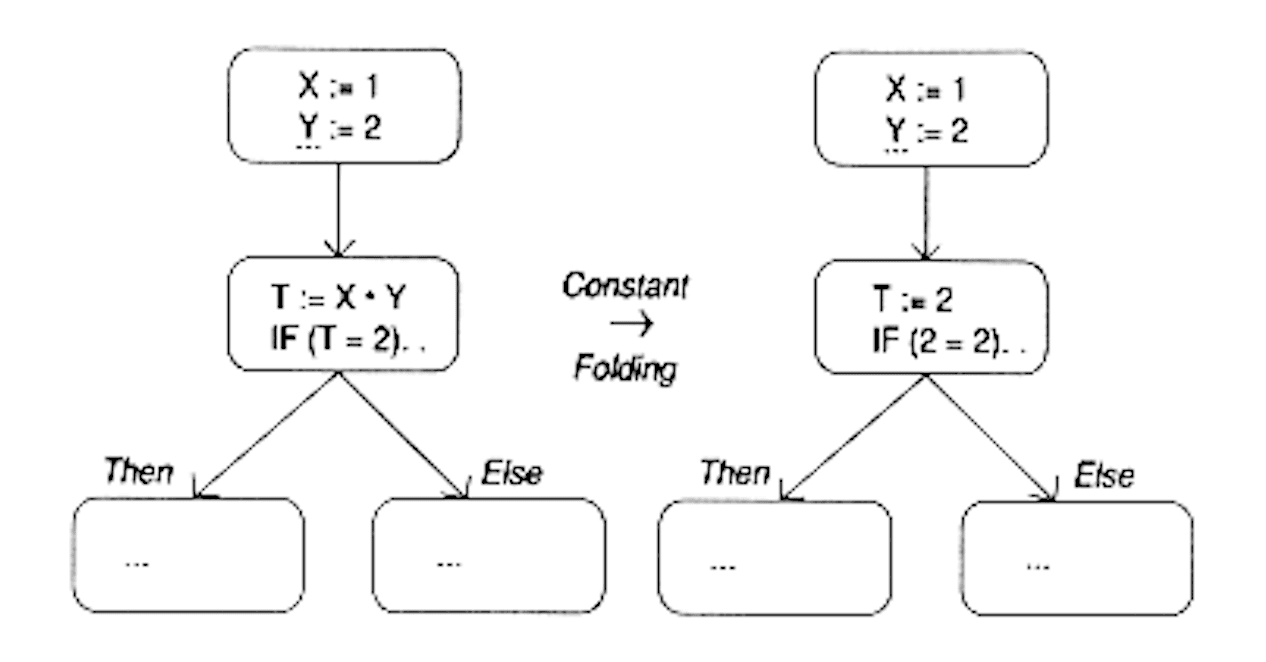

The following example shows how after constant propagation followed by constant folding

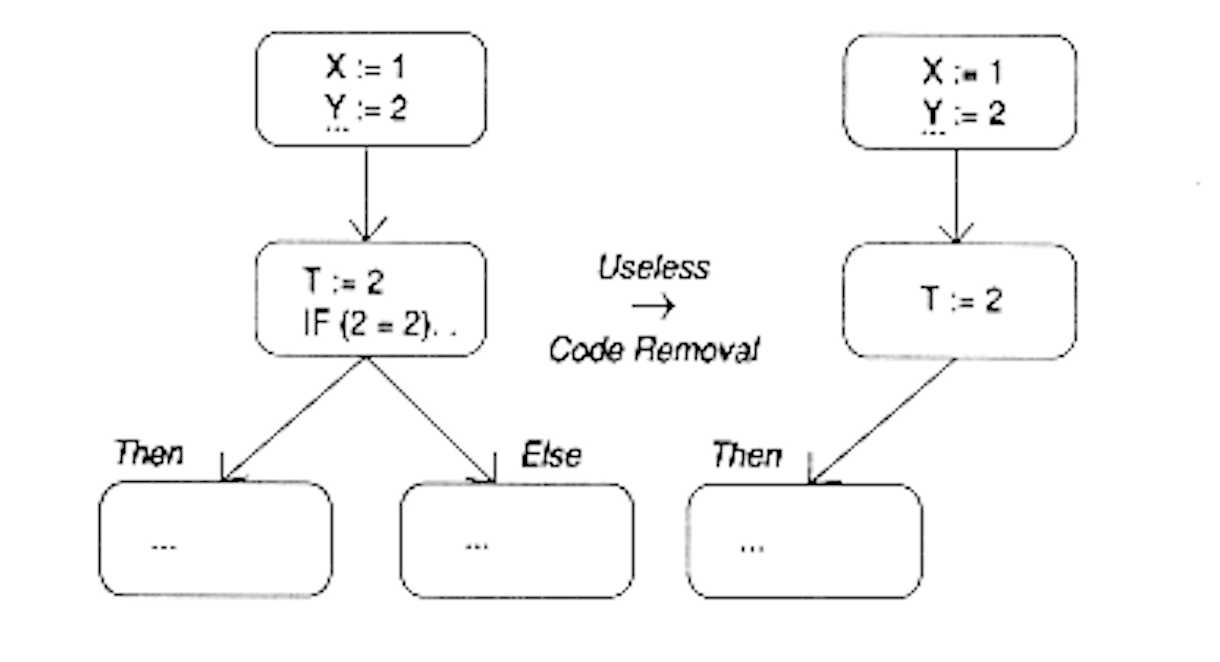

the arrow corresponding to the else dissapears in the graph and we can conclude that we can remove the else code (and the condition checking) since is not reachable.
